Part# ES23RUNPLUS
SPECIFICATIONS:
- Brush and Brushless Dual System

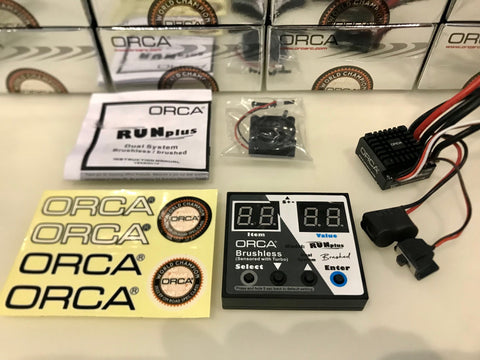

- LED Program Card included
- Multiple Adjustable Parameters
- BEC : 4A 6V / 7V
- Peak Current 310A
- Continuous Current 80A
- Brushless Motor limited 10.5T
- Motor Type: Brushless sensored 540 size Motor
- Voltage input : DC 6V - 12.6V
- 2-3cells Lipo
- Dimensions: 29.5(L) x 29.7(W) x 17.5(H) mm
- Weight: 22g excluding wires

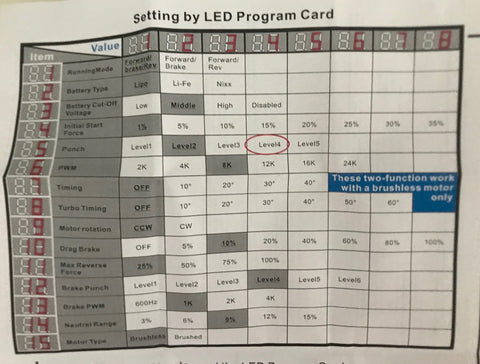

Setup Parameter:
- Running Mode: Fwd/Bke/Rev, Fwd/Bke, Fwd/Rev
- Battery tpe: LiPo / LiFe / Nixx
- Battery Cutoff
- Initial Launch Force
- Punch
- PWM: 2k, 4k, 8k, 12k, 16k, 24kHz
- Timing: off, 10, 20, 30, 40 degree (brushless mode only)
- Turbo Timing: off, 10, 20, 30, 40, 50, 60 degree (brushless mode only)
- Motor Rotation: counter clockwise, clockwise
- Drag Brake
- Max Reverse Force
- Brake Punch
- Brake PWM: 600, 1k, 2k, 4kHz
- Neutral Range
- Motor Type: Brush, Brushless
